Your diesel heater’s glow plug draws a massive inrush current the instant it lights, and a flimsy power supply that can’t deliver clean 12V DC at that moment is the single fastest path to an E10 error code and a cold morning. The difference between a reliable heat system and a frustrating paperweight is the voltage stability under that initial surge—not just the wattage number on the box. You need a switching supply built to handle the inductive load of a fuel pump and the resistive load of a glow plug simultaneously, without sagging below 11.5V.
I’m Rikta — the co-founder and writer behind FitlyFast. I’ve spent years analyzing switching-mode power supply topologies, reading line-regulation curves, and cross-referencing real-world diesel heater voltage drops to flag the converters that actually hold their rated current without thermal foldback.
This guide compares seven AC to DC converters side by side, filtering by surge capacity, cooling efficiency, and voltage adjustability so you can pick the 12v power supply for diesel heater that keeps your flame lit through the night.
How To Choose The Best 12V Power Supply For Diesel Heater
A diesel heater is not a simple resistive load—it combines a glow plug that can pull 10-14A during startup, a fuel pump that pulses inductive spikes, and a control board that needs clean DC. Buying a power supply based only on continuous wattage ignores the surge that causes voltage dips and error codes.
Continuous Current vs. Peak Surge
Look for supplies rated at least 20A continuous for a 2kW heater and 30A for a 5kW or 8kW unit. The peak surge during glow plug ignition can briefly exceed the continuous rating by 20-30 percent. A supply that folds back or cuts off during that surge will trigger an E01 or E10 error. Mean Well and UL-listed units typically have better headroom.
Voltage Adjustment and Line Regulation
Diesel heater control boards expect a steady 12V. Many cheap supplies ship at 11.8V, and under load they sag below 11.5V, starving the pump and glow plug. A supply with a voltage adjustment potentiometer lets you dial to 12.5V or 13.0V, compensating for line loss in long wires. Check the line regulation spec—units with less than 1 percent variance from no-load to full-load are ideal.
Cooling Design and Noise
Diesel heaters often run continuously for 8-12 hours. A power supply with a temperature-controlled fan that stays off under 40°C runs silently during normal operation and only spins up under heavy load. Supplies with an always-on fan can produce a constant drone, which matters if the unit sits in a living space or camper.
Terminal Type and Installation
Screw-terminal blocks are the most common connection method and allow a permanent, code-compliant install. Alligator clips are convenient for temporary bench testing but can vibrate loose in a vehicle or cabin setting. Some mid-range supplies include both options, which adds flexibility for different use cases.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Mean Well LRS-350-12 | Premium | Permanent install with industrial reliability | 348W / 29A continuous; 85% efficiency | Amazon |
| ALITOVE 600W 50A | Mid-Range | Running 8kW heaters with included cigarette socket | 600W peak; fan starts at 113°F | Amazon |
| EAGWELL 600W 50A | Mid-Range | No-tool quick connection with alligator clips | 600W peak; built-in EMI filter | Amazon |
| IMAYCC 600W 50A (Silver) | Mid-Range | Budget-friendly 50A with voltage adjustment | 600W peak; adjustable output up to 13.5V | Amazon |
| Yaheeda 600W 50A | Mid-Range | Compact bench supply for workshop 12V gear | 600W peak; red on/off rocker switch | Amazon |
| IMAYCC 600W 50A (Aluminum) | Budget | General 12V device power with screw terminals | 600W peak; all-copper nickel-plated terminals | Amazon |
| Weishuo 240W 20A | Budget | Small heater (2kW-3kW) with cigarette plug | 240W continuous; flame-retardant shell | Amazon |
In‑Depth Reviews
1. Mean Well LRS-350-12 AC/DC Switching Power Supply
The Mean Well LRS-350-12 is the industrial reference standard for 12V diesel heater power. With a rated 29A continuous output and 85 percent efficiency, it delivers the clean line regulation that keeps glow plug ignition consistent. The fan only spins when the internal case temperature exceeds 122°F, which means silent operation during typical heater runtime in a workshop or campervan.
Build quality sets it apart—torque-specified screw terminals, a voltage adjustment potentiometer accessible through the case, and full protection against short circuits, overload, over-voltage, and over-temperature. Reviewers using it for 3D printers and crypto miners confirm it holds voltage steady under continuous 20A+ draws without ripple or hum.
For diesel heater installation, the 348W rating comfortably handles a 5kW unit’s glow plug surge, and the compact 1.18-inch low-profile form factor fits into tight cabinets. The trade-off is that brackets for mounting are not included, so you’ll need to source or fabricate your own for a permanent install.
Why it’s great
- Industry-leading Mean Well voltage regulation with 85% efficiency
- Fan stays off below 122°F for near-silent heater operation
- Potentiometer lets you dial output above 12V to compensate for wire drop
Good to know
- Mounting brackets not included; requires DIY installation
- Input voltage switch default is 230VAC—must flip to 110V for US mains
2. ALITOVE New Version 600W 50A AC to DC Converter
The ALITOVE 600W 50A converter is a purpose-built solution that includes a standard car cigarette lighter socket, making it the most convenient drop-in option for heaters with a male 12V plug. One verified reviewer ran two 8kW diesel heaters on high simultaneously with no voltage sag, confirming the peak 600W rating holds under extreme load.
The temperature-controlled fan activates at 113°F, which is rare at this price tier—most competing units keep the fan spinning constantly. The aluminum shell with multiple heat dissipation vents, combined with a red-button on/off switch, makes it easy to hard-stop power without unplugging. The included alligator clips and wire lugs give you both temporary and permanent connection options.
Note that one reviewer reported the output sat at 11.9V and dropped to 10.9V after two days, triggering an E10 error on their 8kW heater. That sample may have been a unit with a weak voltage adjustment pot, so dialing the output up immediately on arrival is a good practice. The 24-month warranty from ALITOVE offers extra peace of mind.
Why it’s great
- Includes cigarette lighter socket for plug-and-play heater connection
- Fan only runs above 113°F—silent during normal operation
- Can power two 8kW heaters simultaneously based on user reports
Good to know
- Some units ship with output voltage below 12V; adjust the pot immediately
- The bright green LED is very bright and may need taping in a bedroom
3. EAGWELL New Version 600W 50A AC to DC Converter
The EAGWELL distinguishes itself with a patented tool-free installation system—built-in cables terminated with heavy-duty alligator clips that let you connect to a diesel heater’s control board or battery terminals in seconds without a screwdriver. This makes it the fastest option for temporary setups or bench testing before committing to a permanent install.
Inside the aluminum alloy shell, a built-in EMI filter delivers cleaner DC output than basic switching supplies, which matters for sensitive control boards that can glitch on noise. The smart fan stays off under 30A loads, so when powering a 2kW or 3kW heater at low draw, it runs entirely silent. The included ring terminals and mounting screws allow conversion to a permanent screw-terminal connection later.
EAGWELL recommends operating below 40A (480W) for continuous duty, which still leaves ample headroom for a 5kW heater that pulls roughly 15-20A continuous. The spring-loaded clamps are non-slip but can be bulky in tight compartments, and the power cord must be firmly pressed into the block to avoid intermittent contact—a simple check during setup.
Why it’s great
- Tool-free alligator clips enable 3-second connection to heater terminals
- Built-in EMI filter provides cleaner DC for sensitive control boards
- Fan stays off under light loads for silent heater operation
Good to know
- Continuous duty recommended at 40A / 480W, not full 50A
- Alligator clips are temporary; permanent install needs included ring terminals
4. IMAYCC 110V AC to 12V DC Converter 600W 50A
This IMAYCC 600W unit (model B0D2PZKXF2) is the most recently released option in this roundup, and it comes with dual copper clamps, a cigarette lighter socket, and a built-in on/off switch. The connecting terminals are full copper nickel-plated for low resistance, which reduces voltage drop at high current.
The voltage adjustment potentiometer is accessible under a plastic cover—reviewers note the stock output reads 11.98V, and they were able to dial it up to 12.5V without issue. That extra half-volt makes a meaningful difference in preventing heater error codes during glow plug cycles. The UL, CE, and RoHS certifications verify that the internal components meet safety standards for continuous duty.
One reviewer used it to power a 20A 12V macerator pump for an RV septic tank, confirming the 50A peak rating handles heavy inductive loads. The fan runs continuously on this unit, which is worth noting if silence is a priority for your installation location. The bottom non-slip pads help with heat dissipation when placed on a flat surface.
Why it’s great
- Voltage pot lets you dial above 12V to beat line drop and E10 errors
- Both alligator clips and cigarette socket included for flexible hookup
- UL, CE, RoHS certified for safe continuous operation
Good to know
- Fan runs constantly, not temperature-controlled
- Stock voltage is low (11.98V); adjust immediately on arrival
5. Yaheeda New Version 600W 50A AC to DC Converter
The Yaheeda 600W converter is physically compact—roughly the size of a 3/8-inch socket set case—making it a good fit for tight garage shelves or campervan compartments. It includes a red on/off rocker switch that provides a clean power cutoff, which is safer than relying on unplugging the unit each time.
Multiple reviewers confirm it handles 15-20A draws from scissor jacks and ATV winches without getting warm, and one user reported it stayed cool after swapping brake pads and rotors on a car. The fan runs silently during normal operation, though it’s not temperature-controlled—it runs whenever the unit is powered on, which produces a low but constant hum.
One experienced auto-electrician noted the lack of a replaceable fuse; if the positive and negative outputs accidentally short while powered, the unit can fail without a way to reset it. For a permanent diesel heater installation, adding an inline fuse on the output side is a smart safeguard. The included wire lugs and mounting screws make installation straightforward.
Why it’s great
- Compact footprint fits easily in tight workshop or camper spaces
- Red rocker switch provides convenient power isolation
- Stays cool under 15-20A continuous loads
Good to know
- No user-replaceable fuse—add inline one for permanent installs
- Fan runs constantly, not temperature-controlled
6. IMAYCC 110V AC to 12V DC Converter 600W 50A (Aluminum)
This earlier IMAYCC model (B09B3M84GD) uses the same 600W peak platform but adds a built-in dust-proof net over the cooling fan, which prevents debris from entering the circuit board—a genuine advantage if you’re installing near a wood shop, garage, or dusty barn. The aluminum alloy shell includes multiple heat dissipation holes and anti-skid bottom pads for stable surface mounting.
Reviewers consistently report it works well with Vevor and similar diesel heater brands, providing consistent 12V DC without voltage fluctuation. The dual power connection method (screw terminals and built-in wires) gives flexibility for different cable gauges. One reviewer successfully adjusted the output voltage via the potentiometer hidden under a plastic cover on the faceplate.
Note that this unit does not include a cigarette lighter socket—you connect directly to screw terminals, which some users prefer for a cleaner permanent install. The fan runs continuously, which can produce a low drone in quiet spaces. One user repurposed an old Xbox power supply instead, confirming that the 50A rating is serious overkill for a single small heater.
Why it’s great
- Dust-proof fan net prevents debris from damaging the circuit board
- All-copper nickel-plated terminals for low resistance and high conductivity
- Widely tested with Vevor diesel heaters; consistent performance reported
Good to know
- No cigarette lighter socket—requires screw-terminal connection
- Fan runs constantly, not temperature-controlled

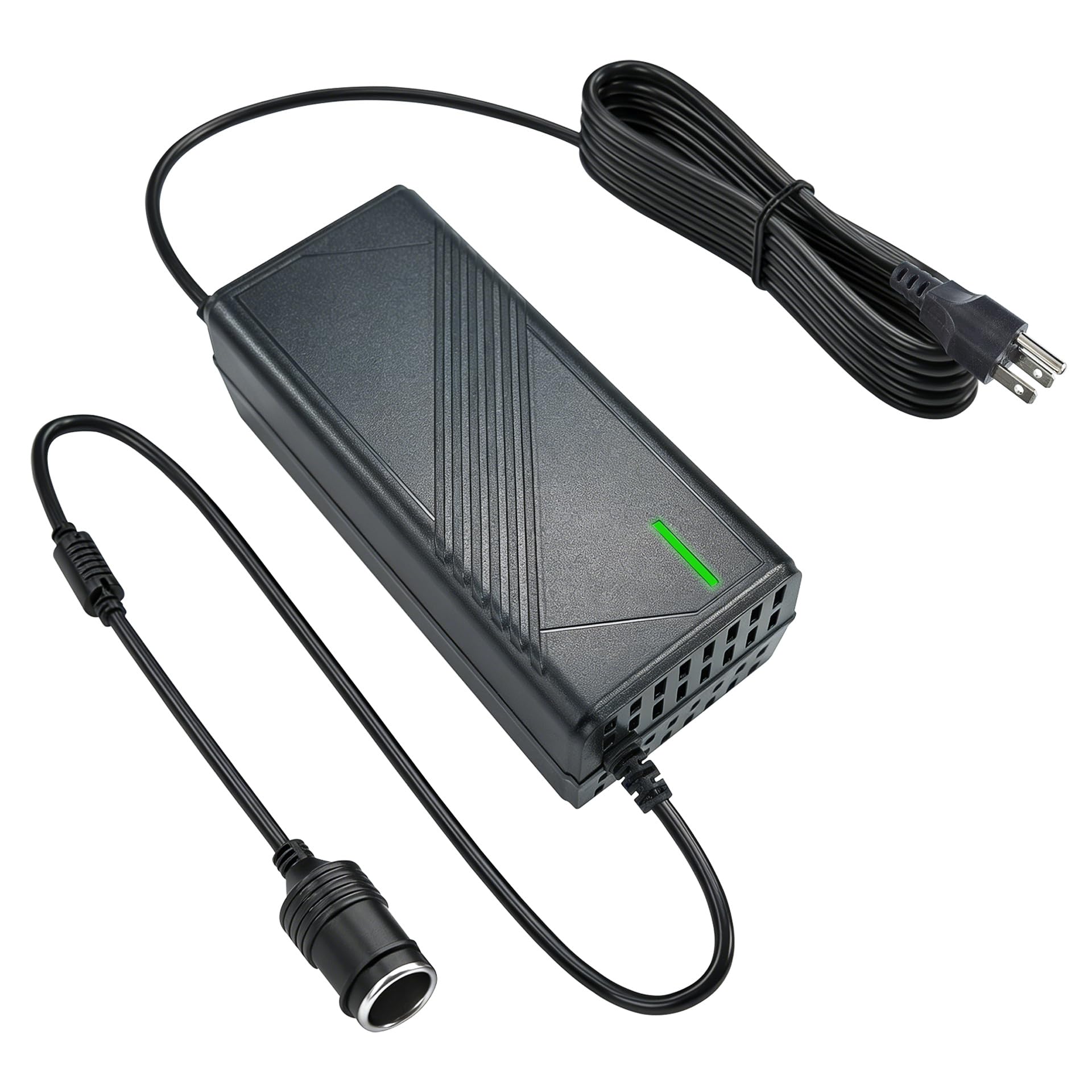

7. Weishuo AC to DC Converter 12V 20A 240W
The Weishuo 240W 20A converter is the entry-level option in this list, designed for smaller diesel heaters in the 2kW to 3kW range. One verified reviewer ran it continuously for three months powering a diesel heater’s glow plug and pump, confirming the 20A rating holds up for 100 percent duty cycle without shutdowns.
The unit comes with a standard car cigarette lighter socket, making it a true plug-and-play solution for heaters that already have a male 12V plug. The flame-retardant shell and built-in silent cooling fan add safety for use in enclosed spaces like a shed or camping tent. The converter stayed cool in a confined space during the three-month test, with no cutouts.
At 240W, this converter cannot handle a 5kW or 8kW heater—its 20A limit means the glow plug surge could overload it during startup. It’s also limited to cigarette lighter style connections, so it’s not suitable for hardwired permanent installations. For a small camper or emergency backup heater, however, it’s a compact and reliable choice.
Why it’s great
- Three-month continuous test confirmed stable 12V for diesel heater
- Cigarette socket provides instant plug-and-play connection
- Flame-retardant shell adds safety for enclosed spaces
Good to know
- Limited to 2kW-3kW heaters; not suitable for 5kW+ units
- Only cigarette lighter connection—no screw terminals for hardwiring
FAQ
Can I use a computer power supply for my diesel heater instead of a dedicated converter?
Why does my diesel heater show an E10 error code when using a wall power supply?
How many amps does a 5kW diesel heater actually draw from a 12V supply?
Is it safe to run a 50A power supply at only 20A load for a small heater?
Do I need a fuse between the power supply and the diesel heater?
Final Thoughts: The Verdict
For most users, the 12v power supply for diesel heater winner is the Mean Well LRS-350-12 because its industrial-grade line regulation, temperature-controlled fan, and adjustable voltage output eliminate the two biggest failure points—E10 errors and fan noise. If you want the convenience of a cigarette socket and the capacity to run two heaters at once, grab the ALITOVE 600W 50A. And for a quick temporary hookup or workshop bench testing, nothing beats the EAGWELL 600W 50A with its tool-free alligator clips.
