An 8-inch swivel caster can turn a deadweight object into something you can steer with one finger—if you pick the right one. The wrong choice leads to stuck wheels, wobbly loads, or a morning spent replacing a bent yoke.
I’m Rikta — the co-founder and writer behind FitlyFast. I’ve spent hundreds of hours cross-referencing load charts, bearing types, tread compounds, and mounting patterns to find which casters actually survive real shop floors and gravel paths.
Whether you are outfitting a workbench, a welding cart, or a heavy-duty dolly, the right 8 inch swivel caster comes down to matching your load weight, floor surface, and maneuverability needs with the correct wheel material and bearing setup.
How To Choose The Best 8 Inch Swivel Caster
Choosing an 8-inch swivel caster is not about picking the biggest wheel you can find. It is about matching three variables—load per wheel, floor type, and mounting pattern—to your specific application. A mismatch in any one of these turns a smooth-rolling cart into a frustrating push.
Load Capacity Per Wheel vs. Total Weight
Every spec sheet lists a load capacity per caster. For a four-caster setup, the total safe load is roughly three times that number (because one caster may bear more weight on uneven ground). If your project weighs 1000 pounds, look for casters rated at least 350 pounds each. Using the full rated capacity leaves no safety margin for dynamic loads or bumps.
Tread Material and Floor Protection
Polyurethane tread offers the best balance of load capacity and floor protection—it will not mar finished concrete or tile. Solid rubber with a knobby tread provides traction on grass and gravel but can leave marks on smooth floors. Pneumatic tires absorb vibration on rough terrain but require air pressure checks. Steel and cast-iron wheels handle extreme loads and high temperatures but will damage any indoor flooring.
Swivel Mechanism and Bearing Type
The swivel mechanism uses either ball bearings or roller bearings. Precision ball bearings allow smoother 360-degree rotation under load—critical for tight spaces. Roller bearings are more durable in dirty environments but require more effort to turn. Grease fittings on both the axle and the swivel race let you lubricate the caster without disassembly, which extends lifespan significantly in dusty shops.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| POWERTEC 8″ Set of 8 | Premium Set | Large projects needing many wheels | 518 lbs per wheel, 2.3″ wide | Amazon |
| LEE TEAM RISE Set of 4 | Heavy-Duty Set | Workbenches and scaffolding | 800 lbs per wheel, 2″ wide | Amazon |
| Service Caster Polyurethane | Premium Single | Floor-safe heavy loads | 800 lbs per wheel, PU tread | Amazon |
| TOROTEK Solid Rubber 1100 lb | High-Capacity Single | Outdoor uneven terrain | 1100 lbs per wheel, knobby tread | Amazon |
| SYRATION Cast Iron | Extreme Load Single | Industrial presses and safes | 1300 lbs per wheel, steel/cast iron | Amazon |
| RRQ Pneumatic 2-Pack | Pneumatic Pair | Off-road carts and wagons | 295 lbs per wheel, air tire | Amazon |
| Houseables Polyurethane | Budget Single | Light carts and dollies | 250 lbs per wheel, PU tire | Amazon |
In‑Depth Reviews
1. LEE TEAM RISE 8 Inch Heavy Duty Casters Set of 4
This four-caster set delivers 800 pounds per wheel, giving a total safe working load of around 2400 pounds across the set. The solid rubber wheels are 2 inches wide and roll quietly over concrete and smooth pavement, making them ideal for heavy workbenches, scaffolding platforms, and large farm stands. Two of the four casters feature a double safety brake that locks both the wheel rotation and the swivel simultaneously—critical when you need the equipment to stay planted on uneven ground.
The precision ball bearings inside the swivel race provide smooth 360-degree rotation even under a several-hundred-pound load. Users have mounted these under homemade scaffolding and heavy-duty drywall carts and reported effortless maneuvering. The plate dimensions are standard 4×4.5 inches, which fits most workbench legs and cart frames without modification.
One trade-off: the solid rubber tread, while excellent on paved surfaces, can buckle under repeated use on sharp gravel. Reviews note that after a season on rough stone driveways, the wheel tread showed signs of wear. For flat, hard surfaces, these casters are a top-tier choice that balances capacity with smooth motion.
Why it’s great
- High per-wheel capacity with dual brake system
- Smooth swivel and roll on flat surfaces
Good to know
- Solid rubber tread may degrade on sharp gravel
- Set includes only 2 locking casters, not all 4
2. Service Caster 8″ Heavy Duty Swivel Caster with Polyurethane Tread
The Service Caster model stands apart because of its polyurethane tread bonded to a polyolefin core. Polyurethane offers the highest abrasion resistance among non-marking materials and will not scuff polished concrete, epoxy shop floors, or tile. With an 800-pound-per-caster rating and a bright zinc-plated yoke that resists corrosion, this caster is built for 24/7 industrial environments where floor protection matters as much as load handling.
The standout feature is the inclusion of grease fittings on both the axle and the swivel bearing race. You can pump fresh grease into the caster without removing it from the equipment, which dramatically extends bearing life in dusty workshops. The mounting height is 9.5 inches, and the top plate measures 4×4.5 inches with bolt hole patterns compatible with standard industrial frames.
One mechanical limitation: this is a swivel-only caster with no brake option. If your application requires locking the wheel in place, you will need to pair it with a separate brake caster or choose a different model. The polyurethane tread also has less traction on soft ground compared to knobby rubber, so keep it on hard, flat surfaces.
Why it’s great
- Polyurethane tread will not damage floors
- Grease fittings on axle and swivel for long-term maintenance
Good to know
- No brake mechanism available on this model
- Not ideal for grass or loose gravel
3. TOROTEK Swivel 8inch Caster Wheels, 1100lb Capacity with Solid Rubber Knobby Tread
The TOROTEK caster pushes load capacity to 1100 pounds per wheel, making it one of the highest-rated single casters in this lineup. The solid rubber tire uses a knobby tread pattern that digs into grass, packed sand, and gravel for positive traction where smooth tires would spin. The reinforced high-carbon steel fork frame distributes weight evenly and resists bending under extreme loads.
The top-mounted double ball bearing system delivers smooth 360-degree swivel action, and the cast steel side paddle brake locks the wheel securely with a step of your foot. Users have mounted these on truck rotisseries weighing over a ton and reported being able to move the entire assembly with minimal effort. The pre-drilled mounting plate fits standard 4×4.5-inch patterns.
A practical note: new rubber wheels emit a noticeable rubber smell. The manufacturer recommends airing them out in a well-ventilated space for a day or two before installation. Also, the knobby tread, while great for traction, may leave light marks on smooth indoor floors if dragged sideways. Consider the Service Caster model if floor protection is your top priority.
Why it’s great
- Very high load capacity for a single caster
- Knobby tread provides traction on turf and gravel
Good to know
- New rubber has a strong odor for first 1-2 days
- Knobby tread may mark indoor floors

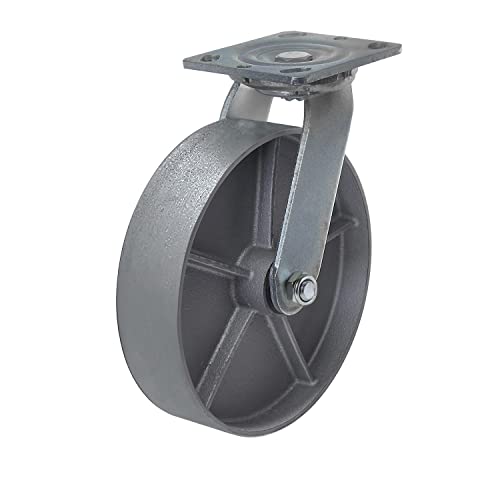

4. SYRATION Heavy Duty Caster Steel Cast Iron Wheel, 1300 LB Capacity
The SYRATION caster is the highest-capacity single unit on this list, rated at 1300 pounds per wheel. The wheel is a hybrid design—a flexible outer steel band bonded to a cast-iron hub—giving it abrasion resistance and the ability to withstand temperatures from -50°F to 800°F. This makes it suitable for foundry equipment, kiln carts, or any environment where standard rubber or polyurethane would melt or degrade.
The swivel assembly includes a 0.75-inch roller bearing and a 0.5-inch ID spanner bushing with a Zerk axle and nylon nut. The roller bearing handles radial loads better than ball bearings in dirty environments, though it requires slightly more push force to initiate swivel rotation. Users have installed these under a 1200-pound safe and reported smooth rolling with no wobble.
The major compromise is floor damage. Steel-on-concrete will mark and scuff any surface, and the lack of a brake mechanism means you need to rely on external wheel chocks or alternative locking methods for stationary use. These casters are purpose-built for extreme loads on rough industrial floors where floor finish is not a concern.
Why it’s great
- Highest load capacity at 1300 lbs per caster
- Operates at extreme temperatures from -50°F to 800°F
Good to know
- Steel wheel will damage finished floors
- No brake mechanism included

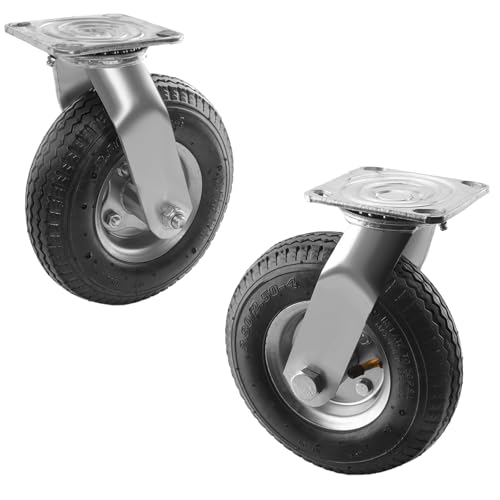

5. RRQ 8 Inch Pneumatic Swivel Caster Wheels (2-Pack)
The RRQ pneumatic caster uses an air-filled tire (size 2.80/2.50-4) to absorb vibration and roll smoothly over grass, gravel, and uneven dirt paths. The tire width of 2.44 inches provides a larger contact patch than most solid rubber casters, which distributes weight and prevents sinking into soft ground. Each caster is rated at 295 pounds, making a set of four capable of handling around 1200 pounds total.
The swivel mechanism uses precision ball bearings for smooth rotation, and the zinc-plated top plate measures 3.93×4.56 inches with multiple bolt hole patterns for compatibility with different frames. Users have deployed these on off-road cooking carts, portable kitchens, and V-blade movers, reporting that the pneumatic tire rolls over concrete cracks and small rocks without getting stuck.
The main drawback is maintenance. Pneumatic tires require periodic air pressure checks, and the included inner tube can puncture on sharp debris. Some units arrived with a missing grease fitting on the swivel race, requiring a replacement fitting from a hardware store. If you need a set-and-forget caster for paved surfaces, a solid rubber model will serve better.
Why it’s great
- Pneumatic tire absorbs vibration on rough terrain
- Wide 2.44-inch tread for soft ground
Good to know
- Requires periodic air pressure checks
- Some units may have missing grease fittings
6. POWERTEC 8 Inch Caster Wheels Set of 8 (Swivel)
The POWERTEC set of eight casters is the only bulk option on this list, designed for projects that need a full set of wheels—like large workbenches, heavy-duty carts, or trailer builds. Each wheel is rated at 518 pounds and features a solid molded rubber knobby tread on a red steel hub. The knobby pattern provides reliable traction on concrete, asphalt, and packed gravel without the maintenance of pneumatic tires.
The swivel mechanism uses a high-performance design with a grease fitting for easy lubrication. Users have mounted these on 500+ pound smokers and remote-controlled lawnmowers and reported smooth rolling with no wobble. The steel yoke is pre-drilled with a standard plate mount pattern, and the 2.3-inch wheel width offers a good balance between load distribution and maneuverability.
Because this is an 8-pack, the upfront cost is higher than buying individual casters. If you only need a set of four, you would be paying for more capacity than needed. Additionally, installation hardware is not included, so you need to source your own bolts. For large builds requiring uniform wheels on all corners, this set delivers consistent performance across every wheel.
Why it’s great
- Bulk set of 8 for large projects
- Knobby rubber tread grips uneven surfaces
Good to know
- Higher total cost for smaller builds
- No mounting hardware included
7. Houseables 8 Inch Caster Wheels, Swivel, Polyurethane
The Houseables caster is the most affordable entry point for an 8-inch swivel caster with a polyurethane tire. Rated at 250 pounds per wheel, it is best suited for light-duty applications like utility carts, dollies, and portable plant stands. The polyurethane material is molded directly onto a metal hub with integral roller bearings, which keeps rolling resistance low on smooth surfaces like concrete and linoleum.
Users have installed these on gate rollers and light workshop carts, reporting that the tire rotates smoothly and does not go flat over time. The 2-inch wheel width is standard for the category and fits most plate-mount brackets. The black-and-red color scheme matches common shop equipment aesthetics.
The limiting factor is the 250-pound load capacity. For a four-caster setup, the safe working load is roughly 750 pounds—fine for a tool cart but insufficient for a workbench carrying heavy machinery or a loaded safe. The included mounting screws have been criticized as being too soft; users recommend replacing them with Grade 8 hardware from a local supplier.
Why it’s great
- Affordable polyurethane tire that won’t mar floors
- Smooth rolling on concrete and tile
Good to know
- 250 lb per wheel is light for this category
- Included screws are low quality—replace them
FAQ
What is the difference between a swivel caster and a rigid caster?
How do I know which bolt pattern fits my equipment?
Can I use polyurethane casters on gravel?
Why does my caster wobble when loaded?
Final Thoughts: The Verdict
For most users, the 8 inch swivel caster winner is the LEE TEAM RISE Set of 4 because it delivers a strong 800-pound-per-wheel capacity with dual lock brakes and smooth ball-bearing swivel action at a reasonable price point. If you need floor-safe operation with easy maintenance, grab the Service Caster Polyurethane for its grease fittings and non-marking tread. And for heavy outdoor use on grass and gravel, nothing beats the TOROTEK 1100 lb caster with its knobby tread and step-on brake.
