The Testo 550s redefines the AC manifold gauge set category by replacing analog needle reading with a digital display that calculates superheat and subcooling in real time. The pressure accuracy of ±0.5% of full-scale value eliminates the guesswork inherent to printed analog scales, and the integrated Bluetooth sends live data to your phone for remote monitoring of evacuation curves.

Two wired temperature clamp probes let you grab pipe temperatures at the service port without secondary tools — the manifold itself becomes the diagnostic hub. The housing is ABS/PA/TPE, which holds up to drops on concrete, and the backlit display remains readable in low-light mechanical rooms. It handles most common refrigerants plus A2L mildly flammable types, making it future-proof for upcoming regulatory shifts.

Downsides: the contrast washes out slightly in direct sunlight despite the backlight, and the included case is more of a padded sleeve than a hard shell. Professional technicians who document every charge will find the app’s report-export feature saves hours of manual note-taking.

Check Price on Amazon

The Yellow Jacket 42201 is a forged brass analog manifold that feels dense and precisely machined the moment you pick it up. The threads engage without cross-threading, and the valves operate with a smooth, progressive resistance that signals quality metal-on-metal seating. It is built in the United States and routinely outlasts several cheaper sets on the same service truck.

Gauges are easy to read with minimal needle flutter thanks to the internal dampening mechanism. The ball valve version (sold separately) provides quarter-turn shutoff that seals tighter than standard needle valves, holding a vacuum indefinitely during evacuation tests. Users report holding 70 PSI for over 48 hours with zero bleed-down, which matters when you need to verify a system holds before charging.

This set is bare bones — no hoses, no couplers, no case. You supply your own color-coded lines and tank adapters. For technicians who already own quality hoses, this manifold alone is worth the investment. It does not include a sight glass, so you will need to monitor charge by gauge behavior and superheat calculation.

Check Price on Amazon

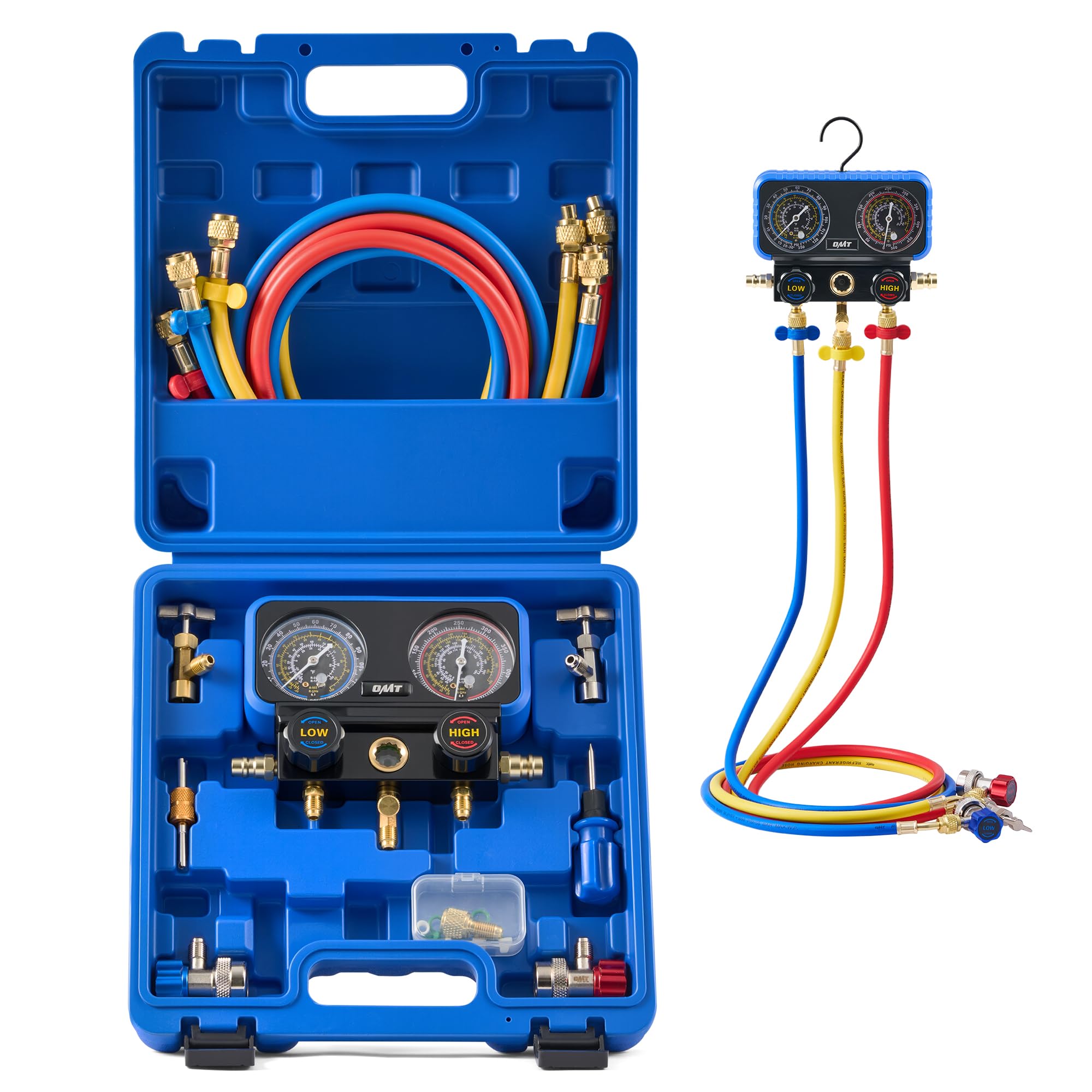

Orion Motor Tech’s gauge set occupies the sweet spot between budget anxiety and pro pricing. The 3-way manifold is cast from solid brass with an aluminum body, and the gauge heads are protected by thick rubber covers that absorb drops on concrete. The hoses are neoprene-coated, rated to 600 PSI working and 3,000 PSI burst — sufficient for R134a, R22, and R502 systems commonly found in cars and residential units.

The large Fahrenheit dials with colored zones make it easy to spot out-of-range pressures at a glance, and the 45-degree hose ends with built-in core depressors reach tight service ports without bending. This set arrives with two R134a couplers, a can tap, a valve core wrench, safety glasses, and nitrile work gloves — all packed in a hard plastic case. For a home mechanic who services one or two vehicles a year, this is the most complete ready-to-run kit in the mid-range.

The included can tap for R134a receives consistent criticism for poor thread engagement with certain aftermarket cans. Plan to replace it with a high-quality self-sealing tap if you work with R134a regularly. Users also note that the Teflon tape instruction in the manual is unnecessary for standard flare connections and can cause debris if over-applied.

Check Price on Amazon

The BACOENG 4-way manifold is the most affordable way to get a true separate vacuum port in your workflow. With four color-coded 5-foot hoses (red, blue, yellow, black), you can keep the vacuum pump connected on the black line while using the yellow for the refrigerant tank, avoiding the common leak point that occurs when you swap lines mid-service. The gauges read 0–550 PSI low side and 0–750 PSI high side with Fahrenheit units.

Build quality centers on a solid brass and aluminum manifold body with PVC hoses rated to 800 PSI working and 4,000 PSI burst. The 4-way valve block is noticeably heavier than entry-level 3-way sets, and the valves close with a positive stop that suggests decent machining tolerance. A detailed instruction manual with parts diagram helps first-time users understand the 4-way routing without guessing.

Some users report that the high-side connector arrived with a slow leak on initial units, though customer support replaced the fitting promptly. The universal can tap is functional but not ideal — a threaded replacement more suitable for R134a self-sealing cans is recommended. For the price, this set delivers a 4-way configuration typically reserved for sets costing significantly more.

Check Price on Amazon

VEVOR’s 4-way manifold set markets itself as a universal solution for R134a, R22, R12, and R410a, and the gauge face includes scales for all four refrigerants on the same dial. The dry/liquid-filled hybrid gauge design allows accurate readings in cold weather when liquid-filled dampers thicken, and the calibration screw lets you fine-tune zero before each job. The four reinforced PVC hoses all share the same 800 PSI working and 4,000 PSI burst rating.

Kit completeness is the headline here — you get a valve core wrench, screwdriver, hook, extra gaskets, O-rings, sealing gaskets, and three different tank adapters including 1/4 SAE to 1/2 ACME. For a homeowner servicing both a car (R134a) and a mini-split (R410a), this single kit covers both without extra purchases. The hoses are 5 feet long, which is sufficient for most under-hood and compressor access without excessive coiling.

The main caveat is quality control on fittings: several buyers reported missing the low-side coupler, and one user had a hose connection loosen during operation, spraying refrigerant and oil before they could tighten it. Check every fitting before connecting to a live system. The accuracy out of the box is generally reliable, but verifying against a known pressure source is wise before critical diagnostic work.

Check Price on Amazon

The Lichamp A301 is a no-frills 3-way manifold set built around large, color-coded gauge dials that are readable from across a garage bay. The blue low-side gauge reads to 350 PSI and the red high-side to 500 PSI — sufficient for R134a residential and automotive systems, though the high-side range is lower than some sets that go to 750 PSI. This set includes two self-sealing can taps, a rarity at this price point, which means you can work with R134a and R12 without hunting for a compatible tap.

The hoses are 5 feet long with 600 PSI working and 3,000 PSI burst pressure, and they feature a 45-degree bend on the service end for tight clearance. The valve core depressors retract cleanly when not in use, which prevents accidental discharge. All metal contact points are brass and aluminum, avoiding the zinc alloys that corrode over time in humid shop environments. The included ACME adapter and valve core remover add convenience.

Accuracy limitations show up at the mid-to-high end of the scale — one verified user report noted the low-side gauge reads approximately 3–5 PSI high above 120 PSI, which could mislead a charge decision on a high-ambient day. The included gaskets are hard plastic rather than soft rubber, which can lead to slow leaks after repeated disconnection. DIY users on a tight budget will get functional performance, but pro technicians should budget for a more precise set.

Check Price on Amazon

The LIYYOO 3-hose set is the most accessible entry point into manifold gauge ownership, with a focus on simplicity and compatibility with R410a, R22, and R404A. The hoses are 60 inches long — slightly longer than the typical 5-foot standard — giving extra reach when the service ports are awkwardly positioned on a rooftop condenser unit. The 1/4 inch SAE fittings include a 45-degree bend on one end and a built-in valve core depressor for on-demand line opening.

The aluminum alloy manifold body is lightweight and houses a sight glass that lets you see liquid refrigerant flow during charging. Two 5/16 inch SAE connectors for R410a are included, which is helpful since many entry-level sets only provide 1/4 inch fittings and require a separate adapter purchase. The working pressure is 800 PSI with a burst pressure of 4,000 PSI, matching the rating of far more expensive analog sets.

Where this set cuts corners is in the feel of the valve knobs and the absence of any manual or instructions — you need to already know how a manifold works. The gauge numbers are printed clearly but lack the color-coded danger zones of premium dials. One user returned it specifically because it only had R22 and R410a scales and did not feature both refrigerants on a single gauge face. It works, it seals, and it reads accurately enough for a first-time DIY mini-split install.
