Choosing the wrong VHF antenna is the single fastest way to turn a critical radio call into garbled static or dead air. On the water or in the field, your antenna is the difference between a clear Mayday and a missed transmission that costs time, safety, or a productive day on the job. The right antenna locks onto the marine band, rejects noise, and turns your radio’s rated wattage into actual, usable range.
I’m Rikta — the founder and writer behind FitlyFast. I’ve spent years combing through radio frequency specs, analyzing SWR measurements, and comparing build materials to find the antennas that actually deliver on their gain claims in real-world saltwater and mobile environments.
Whether you are outfitting a center console or a mobile base station, this guide cuts through the noise to help you pick the perfect antenna for vhf radio that matches your specific setup and budget.
How To Choose The Best Antenna For VHF Radio
Picking a VHF antenna is a balance of gain, mounting style, and physical length. A tall antenna on an open mast gives maximum range, but a short, flexible whip on a small boat is more practical for low bridges and trailering. Your choice must match your platform, your radio’s power output, and the typical distance you need to communicate.
Gain: The Range Multiplier
Gain, measured in dBi or dBd, tells you how much the antenna concentrates your signal toward the horizon. A 3dB antenna is a shorter, wider-beam design good for heeling sailboats, while a 6dB antenna offers a flatter, longer beam suitable for powerboats. Higher gain is not always better — a 6dB antenna on a boat that rocks heavily can lose signal as the beam points at the sky one moment and the water the next.
Mounting System and Cable
The mount determines installation difficulty. NMO mounts require a hole, but offer the most secure, lowest-resistance connection for mobile setups. Ratchet mounts let you lay the antenna down for bridges. Check the included coax length — 15 feet is standard for center consoles, while 20 feet may be needed for taller arches or flying bridges. Low-loss RG-58U or RG-8X cable preserves signal strength better than generic thin cable.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Diamond Antenna X30A | Base/Repeater | Ham radio base station | 6.5dB gain, 4.5 ft fiberglass | Amazon |
| Shakespeare Galaxy 5225-XT | Marine Premium | Offshore safety | 6dB gain, collinear 5/8 | Amazon |
| Shakespeare 5206-N | Marine Classic | Reliable replacement | 8 ft length, 3 lb weight | Amazon |
| Tram 1600-HC | Marine Budget | Inshore/offshore value | 6dB gain, 35 in whip | Amazon |
| Tram 1603 (38-In) | Marine Mid-Range | Low-bridge clearance | 6dB gain, 38 in tall | Amazon |
| UAYESOK 48-Inch | Compact Marine | Small boats | 3dBi gain, 44 in | Amazon |
| HYS Dual-Band NMO | Mobile/Compact | Vehicle trunk install | 3dBi VHF, 20 in whip | Amazon |
In‑Depth Reviews
1. Diamond Antenna X30A Dual-Band Base Repeater Antenna
The Diamond X30A is the gold standard for a fixed-base VHF station. Its 6.5dB gain is the highest in this lineup, giving you a very flat radiation pattern that punches into distant repeaters with ease. Owners report hitting repeaters 32 miles away on just 5 watts with full quieting, and the antenna holds up well against hurricanes — a real-world durability test that few antennas survive.
Built with a rugged fiberglass shell and weatherproof sealing, the X30A is designed for permanent outdoor installation on a mast or tripod. Unlike most marine antennas, it is a true dual-band design tuned for the 2m (144 MHz) and 70cm (430 MHz) ham bands, which also makes it extremely effective for GMRS use. The included mounting hardware is complete and straightforward to assemble.
Be aware that the advertised N-female connector is actually an SO-239 on production units, so plan your coax leads accordingly. For pure range, build quality, and versatility across both VHF and UHF amateur bands, this antenna is the clear winner for base station use.
Why it’s great
- Excellent SWR readings across the 2m and 70cm bands
- Rugged fiberglass construction holds up in extreme weather
- High gain gives real-world 30+ mile repeater access
Good to know
- SO-239 connector despite N-female listing
- Best suited for base, not mobile marine use
2. Shakespeare Galaxy 5225-XT 8′ VHF Antenna
The Shakespeare Galaxy 5225-XT is the premium choice for serious offshore boaters. Its collinear-phased 5/8-wave elements deliver a true 6dB gain that translates into 100+ mile radio checks reported by owners. The brass and copper internal elements are optimized for maximum efficiency, far exceeding the construction of budget fiberglass whips.
One of the best features is the pre-soldered end connector that fits through small cable-passage holes — this eliminates the frustrating job of terminating a coax connector in a cramped space. The 20-foot low-loss cable gives you plenty of slack for tall arches or flying bridges. The white gloss finish resists chalking and UV degradation far better than standard fiberglass antennas.
At 8 feet tall, this antenna requires careful planning for trailering and low bridges. The standard 1-inch-14 thread ferrule mates to most ratchet mounts. It is the benchmark for offshore VHF reliability and is trusted by experienced cruisers who demand insurance-grade communication.
Why it’s great
- Superior non-chalky coating resists UV
- Pre-soldered connector eases installation
- Genuine 6dB collinear design for max range
Good to know
- Full 8 ft length may be tricky for trailered boats
- Premium price reflects pro-grade materials
3. Shakespeare 5206-N 8′ VHF Antenna
The Shakespeare 5206-N is the workhorse of the marine VHF world. A previous unit lasted 20 years on one owner’s boat before being replaced — that kind of longevity is the standard by which all fiberglass antennas are judged. This 8-foot antenna delivers reliable, consistent performance on sailboats and powerboats alike, with a low SWR that keeps your radio safe.
Installation is straightforward with the included mount hardware. The connector termination requires a simple step-by-step approach, but the instructions are clear and the components fit together cleanly. Once installed, radio checks come back strong from significant distances — one owner reported a first radio check from over 100 miles away on his 26-foot motor sailor.
At this price, you are getting the same rugged fiberglass build and proven electrical design that has made Shakespeare a household name in marine electronics. If you want a simple, trustworthy replacement that will likely outlast your boat’s current rigging, this is the antenna.
Why it’s great
- Proven 20-year lifespan in real marine conditions
- Easy, guided connector installation
- Excellent range for its price tier
Good to know
- No pre-soldered connector
- 8 ft length may require folding mount
4. Tram 1600-HC Pretuned 35-Inch VHF Antenna
The Tram 1600-HC punches well above its price point for inshore and offshore boaters. This 35-inch fiberglass antenna with a stainless steel whip delivers a 30-mile radio check from a 17-foot bay boat, with excellent weather channel clarity. The included 15-foot RG58 coax with PL-259 connectors means you can get it on the air right out of the box on most standard VHF radios.
One of its standout features is the no-ground-plane design. Because it uses a DC-ground shunt-fed half-wave configuration, it works perfectly on fiberglass boats where a traditional antenna would need a metal ground plane. Owners report SWR readings around 1.2 on Cobra and Standard Horizon radios, and the antenna has survived coastal salt environments for several years.
The 6dB gain claim is optimistic — similar antenna designs are typically rated around 3dB — but real-world performance is still impressive for the size and price. The set screw is known to vibrate loose, so a drop of Loctite is recommended. For a budget-friendly upgrade that works on nearly any small boat, the Tram 1600-HC is tough to beat.
Why it’s great
- No ground plane required for fiberglass hulls
- Compact 35-in length fits easily under Bimini tops
- Excellent value with clear radio checks at 14+ miles
Good to know
- Set screw prone to loosening without Loctite
- 6dB gain claim likely exaggerated

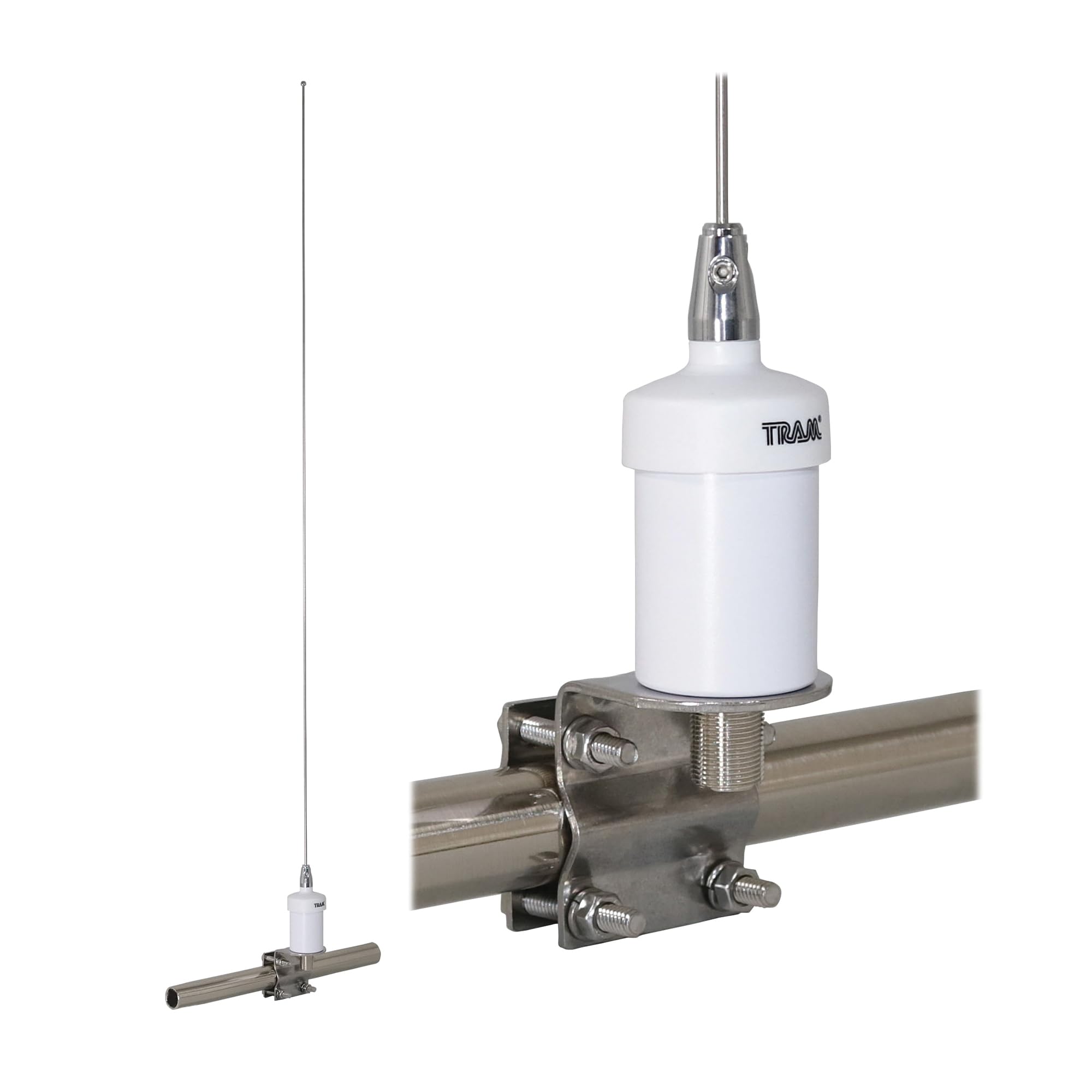

5. Tram 1603 VHF 38-in Marine Antenna
The Tram 1603 is a slightly taller (38-inch) sibling to the 1600-HC, offering similar gain with a more rugged construction. Its heavy-duty stainless steel L-bracket includes both side-mount and rail-mount hardware, making it very adaptable for different boat configurations. The 50-ohm impedance and 6dB gain rating match well with most marine radios.
An antenna analyzer confirms low SWR and an impedance close to 50 ohms across the full marine band — a rare metric at this price. This antenna also performs excellently for AIS reception, adding safety value beyond simple voice communications. The 15-foot RG58A/U cable is sufficient for center consoles and most cabin installations.
It does not have an adjustable base, so you must remove the antenna entirely when putting on a boat cover. A rubber isolator between the stainless bracket and aluminum mast is recommended to prevent galvanic corrosion. For boaters who need a fixed, no-nonsense antenna at a great price, the Tram 1603 delivers reliable performance.
Why it’s great
- Excellent SWR across the full VHF marine band
- Works well for AIS reception
- Durable stainless hardware included
Good to know
- Fixed base — must remove for boat covers
- Rubber isolator needed on aluminum masts
6. UAYESOK VHF Marine Base Antenna 48 Inch
The UAYESOK 48-inch antenna is purpose-built for small boats with limited mounting space. At 44 inches and just 375 grams, it is the lightest full-length marine antenna in this roundup. The 180-degree adjustable nylon ratchet mount lets you fold the antenna down for bridges or storage without tools, making it ideal for trailered skiffs and center consoles.
Electrical specs show a nominal VSWR of 1.5:1 at 159.5 MHz with 3dBi gain. It is pretuned for all marine frequencies and includes a 7-meter RG-58U cable with a PL-259 connector. The fiberglass construction with high-gloss finish resists saltwater corrosion, and the nylon mount adds a layer of insulation between antenna and boat structure.
Note that this antenna does not include mounting screws or bolts — you will need to source your own stainless hardware. The ratchet mount base is well-machined and compatible with standard VHF radio thread sizes. For a lightweight, compact antenna that folds down easily and gets the job done, the UAYESOK is a solid mid-range option.
Why it’s great
- Very lightweight at 375g
- Adjustable ratchet mount for easy lowering
- Good corrosion resistance in saltwater
Good to know
- No mounting hardware included
- 3dBi gain is lower than 6dB alternatives
7. HYS Dual-Band NMO 20 Inch Antenna
The HYS Dual-Band NMO 20-inch antenna is a perfect entry-level kit for adding VHF capability to a vehicle or small boat. The flexible stainless steel whip is only 20 inches tall, making it ideal for trunk-lid installations on cars or trucks where a full-height antenna is impractical. The included L-bracket mount requires a 3/4-inch hole but provides a very secure connection.
This antenna covers both VHF 144 MHz and UHF 430 MHz bands with gains of 3dBi and 5dBi respectively. The 13-foot RG-58 coax terminates to a PL-259 connector, compatible with most mobile radios. Buyers report clear audio and easy installation, with one owner using it on a Polaris Ranger with a Radioddity DB20-GM for reliable 6-mile range before signal skipping began.
This is a genuine NMO mount antenna system, which is the industry standard for professional mobile installations. The kit is well-rounded and the assembly fits factory holes on many vehicles. If you want to add VHF to a truck, Jeep, or ATV without drilling a large hole or dealing with a magnet mount, this is a capable and budget-friendly choice.
Why it’s great
- Compact 20-in size for low-clearance installs
- Rugged NMO mount system for permanent installation
- Affordable dual-band coverage
Good to know
- Requires drilling a 3/4-inch hole
- Flexible whip may bend in heavy brush
FAQ
Can I use a marine VHF antenna for ham radio?
How high should I mount my VHF antenna?
What does dB gain actually mean for my radio range?
Final Thoughts: The Verdict
For most users, the antenna for vhf radio winner is the Diamond Antenna X30A because it delivers the highest gain in this lineup with exceptional build quality for permanent base station installations. If you want a dedicated marine antenna for offshore safety, grab the Shakespeare Galaxy 5225-XT. And for a compact, budget-friendly solution that works on almost any small boat, nothing beats the Tram 1600-HC.
