A weak trickle from the showerhead while the washing machine runs is the kind of household frustration that turns a morning routine into a waiting game. The right automatic water pressure pump eliminates that dial-spinning anxiety by sensing when a tap opens and instantly delivering a consistent, forceful flow across your entire home.
I’m Rikta — the co-founder and writer behind FitlyFast. My research into home water systems has focused on matching pump specs like flow rate, PSI ratings, and motor durability to real-world household layouts so you buy the right unit on the first try.
This guide breaks down the core specs, compares the top models, and gives you a clear verdict on the best automatic water pressure pump for home to match your specific plumbing needs.
How To Choose The Best Automatic Water Pressure Pump For Home
Selecting a home water pressure pump is about matching the pump’s output to your household’s demand. A unit sized for a tiny cabin will struggle with a multi-bathroom house, while an oversized pump can cycle too quickly and wear out. Focus on a few concrete specs to narrow your options.
Flow Rate (GPM) and Pressure (PSI)
Flow rate, measured in gallons per minute (GPM), tells you how much water the pump can move. A typical home with two bathrooms and a kitchen needs at least 5–7 GPM. Pressure, measured in PSI, determines the force of the water. Most residential fixtures work best between 40 and 70 PSI. A pump with an adjustable pressure switch gives you the flexibility to fine-tune the balance.
Pump Type: Diaphragm vs. Jet vs. Booster
Diaphragm pumps are quiet, self-priming, and handle debris well — ideal for drawing from a tank or cistern. Jet pumps (shallow well) are more powerful and suited for drawing from a well up to 25 feet deep. Inline booster pumps are designed to increase low municipal or gravity-fed pressure and are installed directly on your existing main water line. Match the type to your water source.
Self-Priming Capability and Lift Height
Self-priming means the pump can pull water up from a source below it without manual intervention — a critical spec if your water supply is in a basement or cistern. The lift height (usually listed in feet) tells you the maximum vertical distance the pump can draw water. Most home pumps offer a 6- to 10-foot self-priming lift.
Motor Protection and Build Materials
Thermal overload protection shuts the motor down if it overheats, preventing burnout during extended use. Run-dry protection stops the pump if the water supply runs out, guarding against seal damage. For outdoor or humid installations, look for stainless steel or corrosion-resistant housings. Cast iron offers excellent durability but is heavier.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| CrestWave 7GPM | Diaphragm | Quiet whole-home pressure | 4-7 GPM / 70 PSI / 5-Chamber | Amazon |
| SEAFLO 33 Series + Tank | Diaphragm Combo | RV and small home steady flow | 3.3 GPM / 45 PSI / 4-Year Warranty | Amazon |
| Truper PRES-1 | Inline Booster | Whole-house low pressure fix | 1 HP / 14 GPM / Flow Sensor | Amazon |
| Einhell GC-WW 6538 Set | Domestic Unit | Garden and home water supply | 3800 L/h / 3.6 Bar / 20L Tank | Amazon |
| Red Lion RL6AH Tank | Pressure Tank | Reducing pump cycling | 6 Gal / 1.9 Gal Drawdown | Amazon |
| Acquaer Cast Iron Jet | Shallow Well Jet | Well water irrigation | 1/2 HP / 25 ft Well Depth | Amazon |
| VEVOR Shallow Well | Jet Pump | Budget-friendly well water | 1.1 HP / 978 GPH / 40 PSI | Amazon |
| ECO-WORTHY Diaphragm | Diaphragm | High-flow transfer tasks | 5.5 GPM / 70 PSI / 1.6 Amps | Amazon |
| Aquatec 6800 RO Kit | RO Booster | Reverse osmosis system pressure | Up to 100 GPD / 60-80 PSI | Amazon |
In‑Depth Reviews
1. CrestWave Fresh Water Pump 7GPM 70PSI
The CrestWave uses a five-chamber diaphragm design that delivers stable reflux and a remarkably smooth pressure curve from 4 to 7 GPM at 70 PSI. That chamber count reduces pulsation compared to three-chamber pumps, so your shower doesn’t surge when a sprinkler kicks on. The 10-foot self-priming lift and 157-foot max head make it viable for cistern-fed homes or irrigation systems that sit below the water source.
Noise is a genuine highlight here — the pump runs at or below 65 decibels, which is quieter than most dishwashers. The built-in thermal overload, overpressure, and dry-run protection give you a safety net if a line gets kinked or the tank runs low. Setup is straightforward with the included 1/2-inch NPT strainer and two barbed adapters, and the unit mounts vertically or horizontally.
The one-hour auto-pause cycle at high pressure is a built-in cooldown safeguard, not a flaw. You can push this pump hard for continuous transfer work and rely on the 5-minute cool-down reset. It’s the best overall choice for a home that needs consistent, quiet pressure from a diaphragm pump.
Why it’s great
- Very quiet 65dB operation won’t disturb living spaces.
- Five-chamber design delivers smooth, pulse-free flow.
- Comprehensive protection (thermal, overpressure, dry-run).
Good to know
- Auto-pauses after one hour of continuous high-pressure use.
- Ports are 1/2-inch NPT; may need adapters for garden hoses.
2. SEAFLO 33 Series Water Pump and Accumulator Tank System
The SEAFLO 33 Series bundles a brushless diaphragm pump with a 0.2-gallon accumulator tank in one pre-assembled unit. The accumulator stores pressurized water between pump cycles, which dramatically reduces the on/off cycling that shortens pump life and causes irritating pressure fluctuations. At 3.3 GPM and 45 PSI, it’s sized for small to medium homes, RVs, or tiny houses where moderate but steady pressure is the goal.
This system is run-dry safe, self-priming up to 6 feet, and uses EPDM valves and a Santoprene diaphragm that resist corrosion in marine or humid environments. The 115V motor draws only 1.0 amp at max load, making it energy-efficient for off-grid solar setups. Users consistently note the near-silent operation and the significant reduction in vibration compared to standard RV pumps.
The pressure switch is pre-set at 35 PSI on and 45 PSI off. Some users found the off setting caused the pump to run hot in certain configurations, but adjusting the switch is straightforward. The 4-year warranty is the longest in this comparison, reflecting confidence in the brushless motor design. For a compact, quiet, turnkey system, this is the smartest mid-range choice.
Why it’s great
- Integrated accumulator tank reduces cycling and extends pump life.
- Ultra-quiet brushless motor with 4-year warranty.
- Run-dry safe and corrosion-resistant internals.
Good to know
- 3.3 GPM may feel limiting for homes with three or more fixtures running simultaneously.
- Pressure switch may need minor adjustment out of the box.
3. Truper 1 HP High-Performance Water Pressure Booster Pump
The Truper PRES-1 is a true inline booster designed to be installed directly on your home’s main water line. Its integrated flow sensor detects the moment any faucet, shower, or appliance opens and activates the 1 HP motor instantly. This is the right solution for a multi-story home suffering from low municipal pressure or a gravity-fed tank system where the second floor gets a trickle.
With a flow rate of 53 liters per minute (roughly 14 GPM), this pump can handle multiple simultaneous draws — a washing machine, a shower, and a garden hose — without noticeable pressure drop. The thermal overload protection monitors motor temperature and shuts down if things get too hot, which matters when the pump runs for extended periods during irrigation cycles. The ABS housing keeps the weight manageable at about 23 pounds.
Installation requires basic plumbing skills to tie into the main line, and the pump is larger than a diaphragm unit, so you’ll need adequate clearance in a basement or utility room. Noise levels are low for a 1 HP motor, but it’s not silent. For a whole-house pressure solution that doesn’t rely on a storage tank, the Truper is the premium pick.
Why it’s great
- 14 GPM flow handles multiple fixtures at once.
- Automatic flow sensor eliminates need for external pressure switch.
- Thermal overload protection for safe extended use.
Good to know
- Requires inline plumbing installation; not a drop-in unit.
- 1 HP motor is overkill for small apartments or single-bath homes.

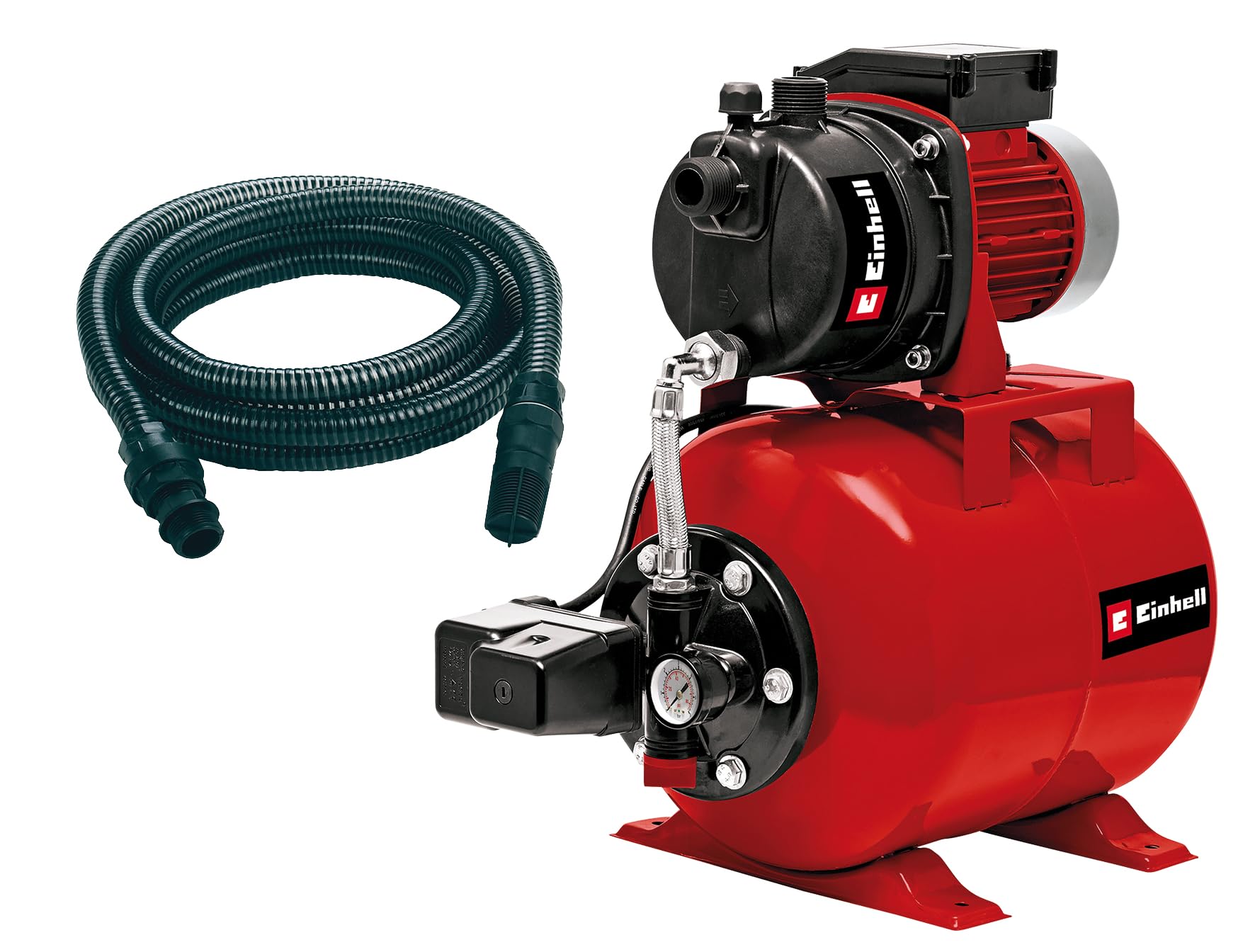

4. Einhell GC-WW 6538 Domestic Water Unit
The Einhell GC-WW 6538 is a complete domestic water system that pairs a 650W pump with a 20-liter steel pressure tank, an integrated pressure switch, and a pressure gauge all in one compact unit. The large tank acts as a buffer, storing pressurized water so the pump doesn’t cycle on every time a small amount of water is drawn — ideal for garden irrigation or as a backup home water supply.
With a flow rate of 3,800 liters per hour (about 16.7 GPM) and a maximum pressure of 3.6 bar (approximately 52 PSI), this system delivers strong volume for watering lawns, filling rain barrels, or supplying a workshop. The unit includes a seven-meter suction hose, making it ready to draw from a rain tank or cistern right out of the box. The water fill and drain plugs simplify winterization and seasonal maintenance.
The primary downside for US buyers is that this model uses R1 (1-inch) thread connections, which are standard in Europe. You’ll need adapter fittings to connect to standard US garden hoses or plumbing. It’s also the most expensive unit here, but the all-in-one design with the large tank and pre-installed pressure switch makes it a true plug-and-play solution for a dedicated water supply setup.
Why it’s great
- Integrated 20L pressure tank minimizes pump cycling.
- High flow rate of 3800 L/h for serious irrigation.
- Includes suction hose and pressure gauge for easy setup.
Good to know
- European R1 thread connections require adapters for US fittings.
- Premium price point reflects the complete system approach.
5. Red Lion RL6AH Pressure Tank
The Red Lion RL6AH is not a pump — it’s a pre-charged pressure tank designed to work alongside your well pump. Its primary job is to store water under pressure so your pump doesn’t have to kick on every time you fill a glass. With a 6-gallon capacity and a 1.9-gallon drawdown at 30/50 PSI, this tank handles up to two fixtures running simultaneously without cycling the pump.
The tank is built from heavy-duty 20-gauge steel with a 304 stainless steel water connection that features patented leak-safe technology. The butyl rubber diaphragm and propylene liner are NSF/ANSI 61 certified for safe drinking water. The included pump mounting bracket and thermoplastic stand lift the assembly off the floor, preventing condensation damage and staining.
Installation is straightforward for anyone comfortable with basic plumbing, and the tank arrives pre-charged to 20 PSI for transportation — you’ll need to top it off to 2 PSI below your pump’s cut-in setting. This tank is a smart addition if you already own a well pump and want to reduce short-cycling, but it is not a standalone booster pump.
Why it’s great
- Reduces pump cycling, extending pump motor life.
- NSF/ANSI 61 certified for safe drinking water.
- Includes mounting bracket and stand for clean installation.
Good to know
- This is a pressure tank, not a pump — requires an existing pump system.
- Pre-charge must be adjusted to match your pump’s pressure switch settings.
6. Acquaer Shallow Well Jet Pump
The Acquaer jet pump uses a 1/2 HP motor housed in a rugged cast iron volute designed for wells up to 25 feet deep. The dual-voltage motor (115V/230V) is factory set to 230V but can be switched easily with an internal switch, giving flexibility for different wiring setups. The automatic pressure switch kicks on when pressure drops below 20 PSI and shuts off at 35 PSI, maintaining a usable range for sprinklers and garden hoses.
Cast iron construction provides excellent vibration dampening and long-term durability compared to plastic-bodied pumps. The built-in pressure gauge lets you monitor system pressure at a glance. Users report that it’s noticeably quieter than typical jet pumps, and the thermal overload protection prevents motor damage if the pump runs dry or stalls.
This pump is best for dedicated well-to-irrigation systems or as a replacement for an aging shallow well pump. It requires filling the pump head with water before the first use (manual priming) and is designed for clean water only — debris will clog the jet assembly. For the price, it offers robust build quality that outlasts budget alternatives.
Why it’s great
- Cast iron volute provides superior durability and noise dampening.
- Dual-voltage motor (115V/230V) for flexible installation.
- Automatic pressure switch with integrated gauge.
Good to know
- Requires manual priming before first use.
- Only for clean water; debris can clog the jet.
7. VEVOR Shallow Well Pump, 1.1 HP
The VEVOR 1.1 HP shallow well pump delivers a high flow rate of 978 GPH with a 131-foot max head and 40 PSI max pressure. The stainless steel pump head and cast aluminum housing resist rust and corrosion, making it suitable for outdoor installations near ponds, rain barrels, or shallow wells. The built-in IPX4 waterproof rating adds protection against rain and splashes.
Setup is simple with the included two garden hose adapters and a 6.6-foot power cable. The iron carrying handle makes it portable enough to move between a lake fountain, a garden irrigation system, or a water transfer task. The energy-efficient motor includes thermal overload protection to prevent overheating during extended runs.
The biggest concern from real-world use is that the pump may lose prime after storage, and some units arrive with priming issues. Priming requires filling the pump head with water before startup, and the pressure switch is not adjustable — it’s fixed at 40 PSI. This pump is a solid entry-level choice for a homeowner who needs high volume at moderate pressure and is comfortable with basic troubleshooting.
Why it’s great
- High 978 GPH flow rate for fast water transfer.
- Stainless steel head and IPX4 rating for outdoor durability.
- Portable design with carrying handle.
Good to know
- Fixed 40 PSI pressure switch is not adjustable.
- Some units require troubleshooting to achieve prime.
8. ECO-WORTHY 110V AC Fresh Transfer Diaphragm Pump
The ECO-WORTHY diaphragm pump delivers a strong 5.5 GPM at 70 PSI with a self-priming lift of up to 9.8 vertical feet. The upgraded pressure switch is designed for longer service life and allows adjustment of the cut-off pressure. The pump features thermal overload protection that automatically disconnects the circuit if the motor exceeds 158°F, protecting against overheating during extended transfer jobs.
This pump is built for heavy-duty water transfer — spraying down driveways, cleaning boat decks, and irrigating gardens. The stainless steel body handles debris better than jet pumps, and the 1.6 amp draw is efficient for a pump of this output. The automatic on/off function means it starts when a faucet opens and stops when it closes, making it convenient for hose-end use.
Durability reports are mixed: some users report gasket failures and pressure loss after weeks of use, while others praise the pump’s performance for small projects. The company’s after-sales support is noted as responsive. This pump is best as a budget-friendly option for intermittent transfer tasks rather than a permanent whole-home installation.
Why it’s great
- Strong 5.5 GPM flow at 70 PSI for demanding transfer tasks.
- Adjustable pressure switch and thermal overload protection.
- Stainless steel body handles debris better than jet pumps.
Good to know
- Some reports of gasket failure and pressure loss over time.
- Best suited for intermittent use, not continuous whole-home pressure.
9. Aquatec 6800 Booster Pump Kit for RO Systems
The Aquatec 6800 is a specialized booster pump kit designed exclusively for reverse osmosis (RO) water filter systems under 100 GPD. It takes incoming line pressure of 30-40 PSI and boosts it to 60-80 PSI, which dramatically improves RO membrane efficiency and reduces wastewater. The kit includes the 6840 pump, a PSW-240 pressure switch, and a 110V transformer with a US plug.
The pressure switch provides automatic on/off operation — the pump shuts off when the RO storage tank is full (40-50 PSI) and turns back on when pressure drops during water use. The pump is compact (8x8x4 inches) and mounts easily near the RO system. Users report a significant improvement in flow rate from the RO faucet and faster tank refill times after installing this kit.
This pump is not for general home pressure boosting, water transfer, or misting systems — it’s narrowly designed for RO applications. The kit does not include an electric shut-off solenoid, relying on the existing mechanical auto-shut-off valve in your RO system. For homes with low incoming pressure causing slow RO production, this is the definitive fix.
Why it’s great
- Significantly boosts RO water production and reduces wastewater.
- Compact kit with everything needed for installation.
- Automatic pressure switch for hands-free operation.
Good to know
- Only compatible with RO systems under 100 GPD.
- Not designed for general whole-house pressure boosting.
FAQ
Do I need a pressure tank or can I just use a pump alone?
What size pump do I need for a two-bathroom house?
Can I install an automatic water pressure pump myself?
Why does my pump lose prime and stop working?
Final Thoughts: The Verdict
For most users, the best automatic water pressure pump for home winner is the CrestWave 7GPM Fresh Water Pump because it combines quiet 5-chamber operation, a strong 70 PSI output, and comprehensive motor protection at a mid-range price point. If you want an integrated accumulator tank for reduced cycling, grab the SEAFLO 33 Series with Tank. And for whole-house boosting in a multi-story home with chronic low pressure, nothing beats the Truper 1 HP Booster Pump.
